Azure Feet for Azure Percept

April 15, 2021

Azure Percept on custom feet

TL;DR: I made a thing, and you can get it here

The Azure Percept DK is a great device to build your AI at the edge prototypes with. It comes mounted on a piece of 8020 rail, which is a global standard for all kinds of setups. But unfortunately, my home office doesn’t feature any other pieces of 8020, unless I mount it to my printer, so I couldn’t put it anywhere. This isn’t too much of a problem, but it makes it hard to properly orient the camera at times. And as if I need to justify this project anymore: how will people know I’m using this awesome tech if I can’t showcase it in my home office! When you have a 3D printer, you get to solve all kinds of problems that don’t exist…

This is what I did:

Quick Search Of Thingiverse

I searched Thingiverse for Azure Percept, and nothing popped up. Hey, I tried!

Next, I tried finding some 8020-related models to see if there was any model I could remix. My 3D skills are extremely limited, so I needed a good starting point. I found this model, and it turned out to be a great fit! Full credit of this part to user menerso. I used Tinkercad to trim it to just this part:

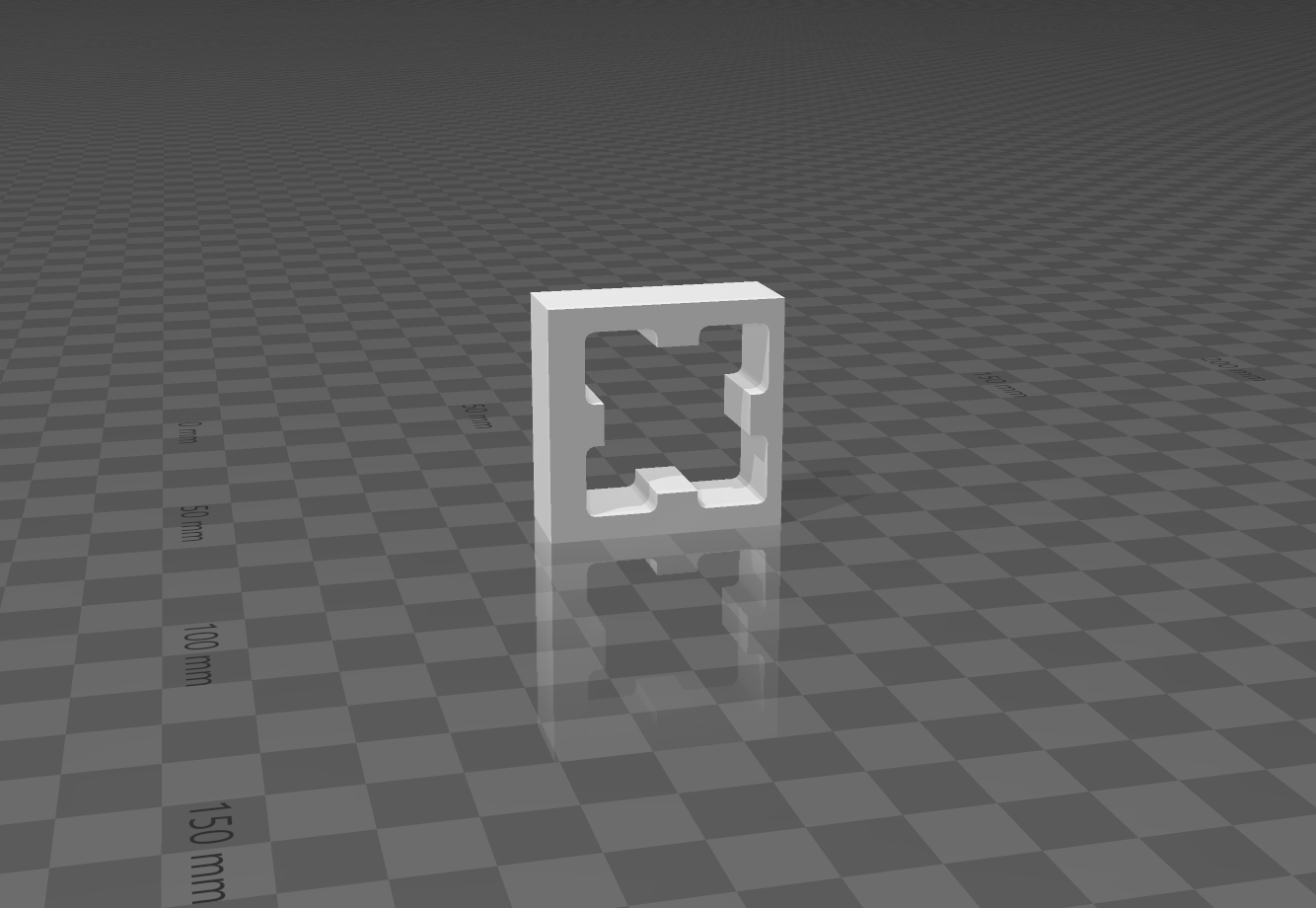

A 3D model that fits on a 8020 rail

My Limited 3D Skills

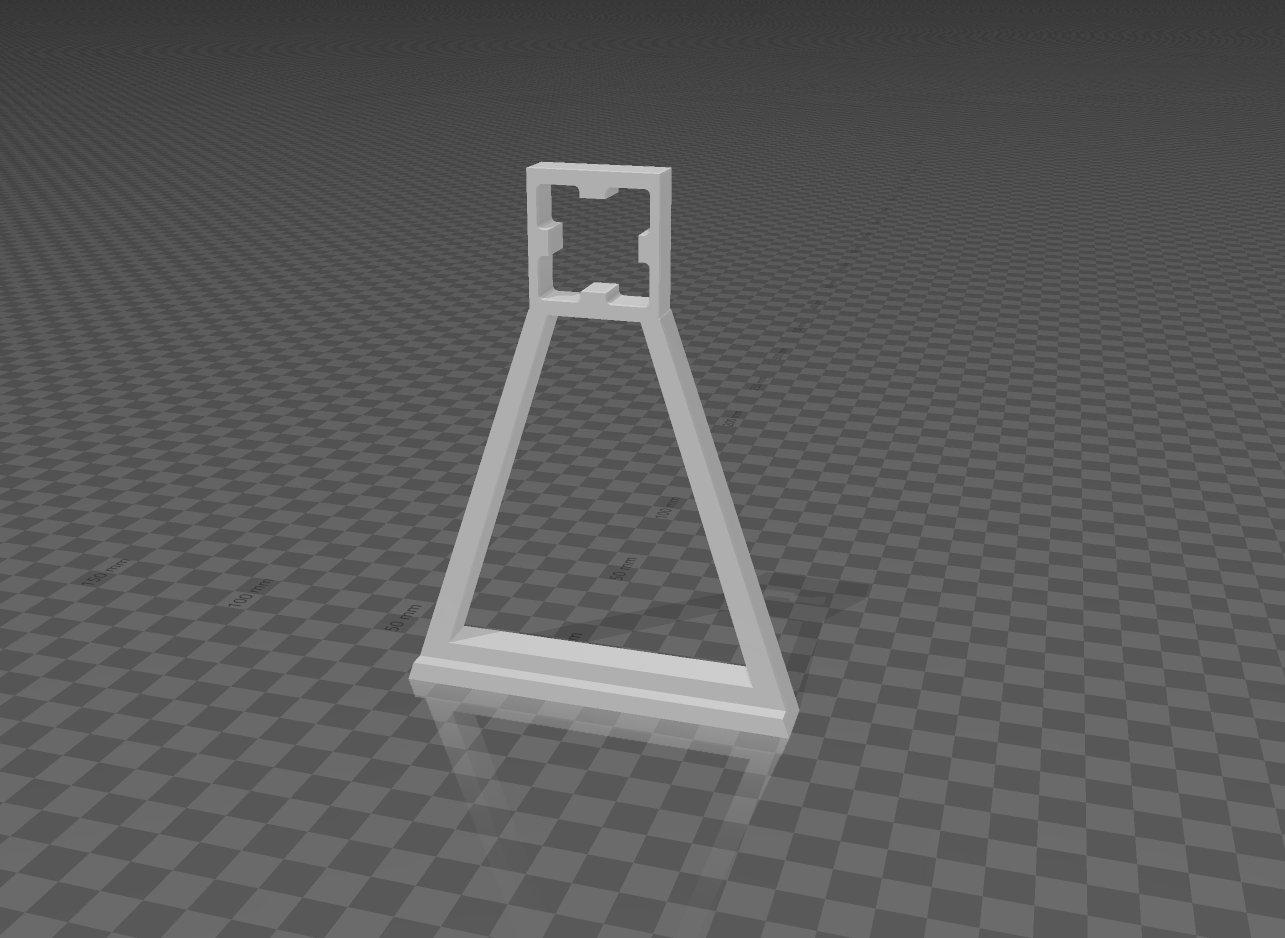

The first version I made was a very simple triangular shape (did I mention my 3D skills are limited?) Functional version

The result wasn’t bad, it just wasn’t… flashy enough?

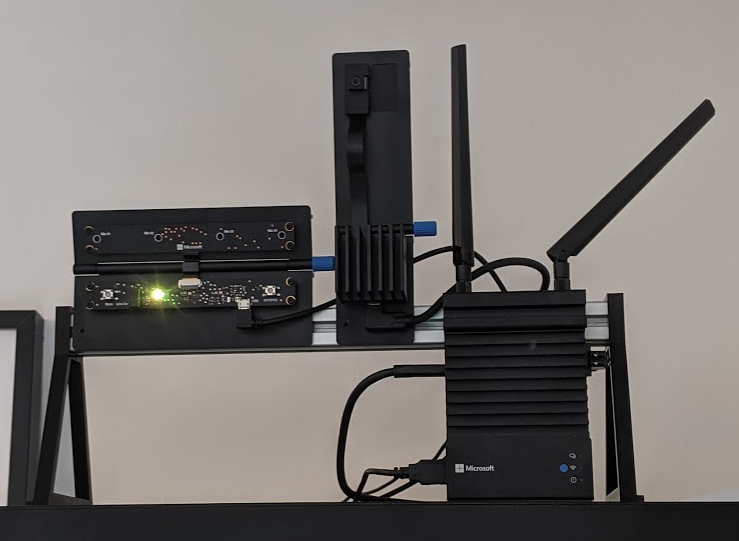

Functional version

How To Not Model An Azure Logo

This design needed 100% more Azure, so I set off to design the Azure logo in 3D before quickly realising I have no 3D skills whatsoever. Luckily, my trusty tool Tinkercad allows importing SVG files! So I imported the Azure logo and for some reason, it was only at that point that I realised that the Azure logo exists of two separate parts… So after some tinkering, I decided to use the 8020 rail connector to connect the two, and just print the model in two colours through a filament swap.

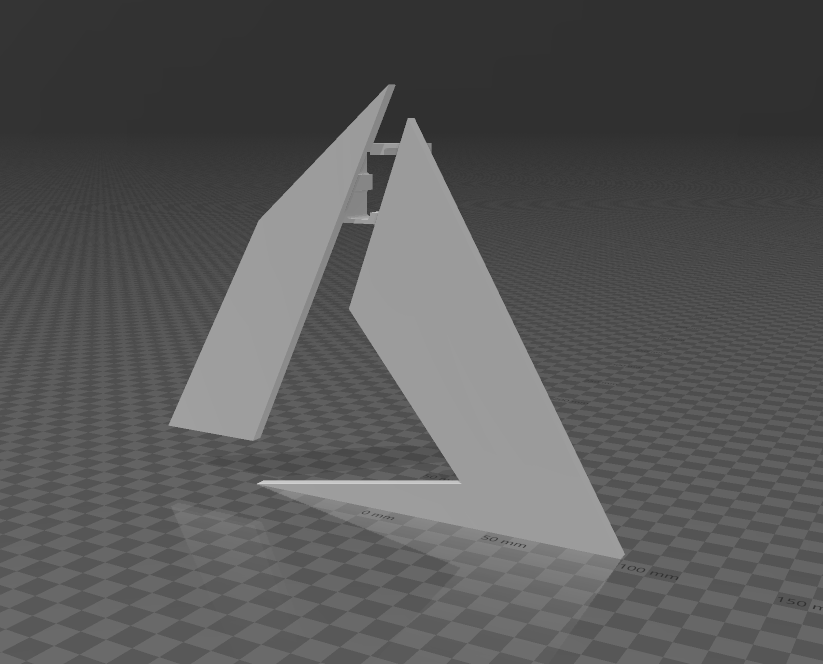

A 3D model of the end result

I’m really please with this blue filament I picked up, it doesn’t match the Azure logo’s colour, but it prints great and is quite glossy too. It has an almost mirror-like finish when you print it on a glass bed. It’s Fillamentum Noble Blue if you want to get the same. So here it is, the end result:

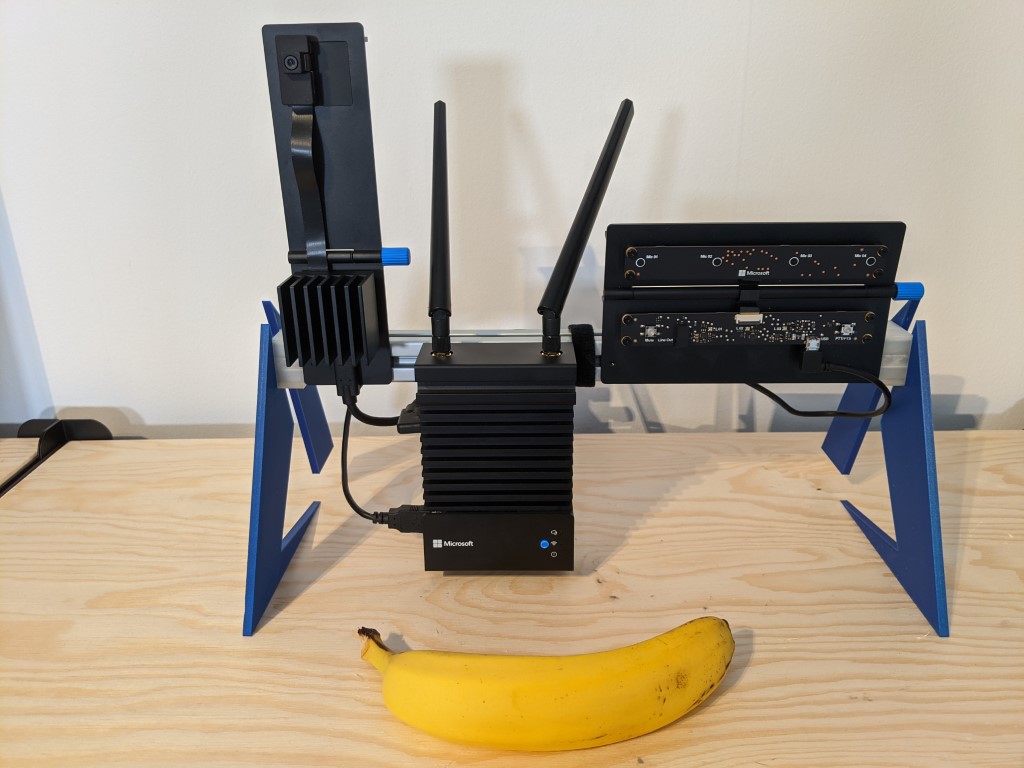

Azure Feet for Azure Percept, with a banana

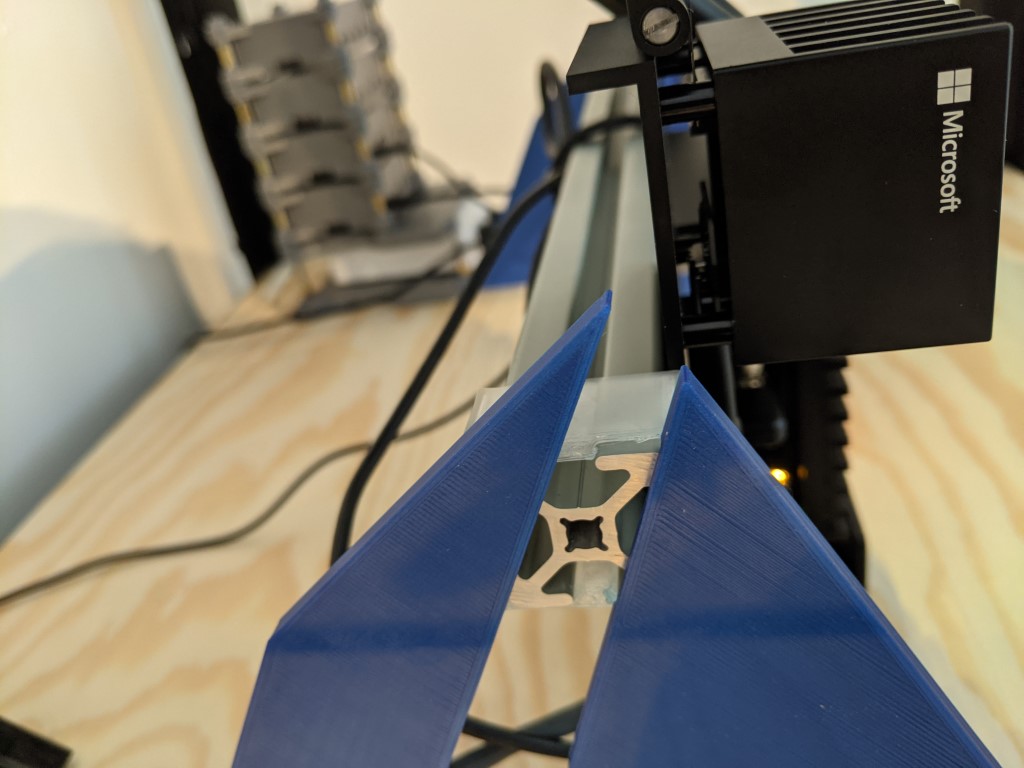

Closeup to show colour transition
